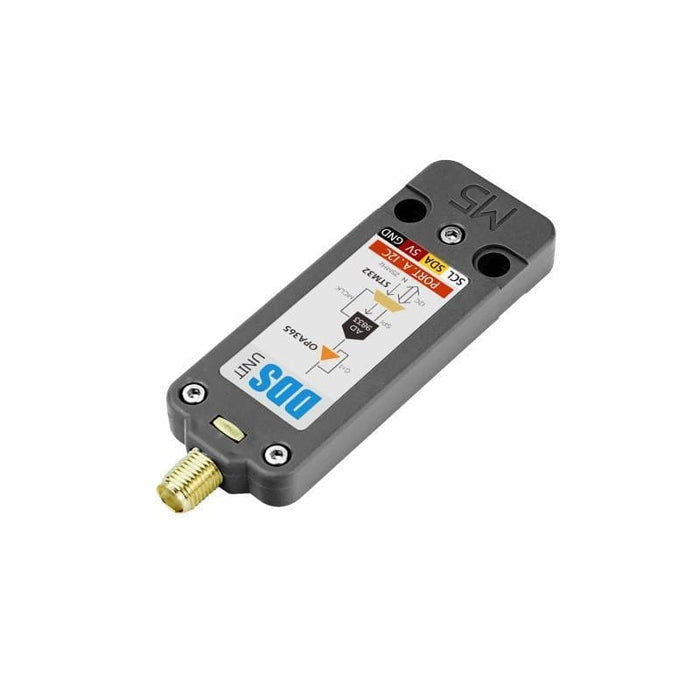

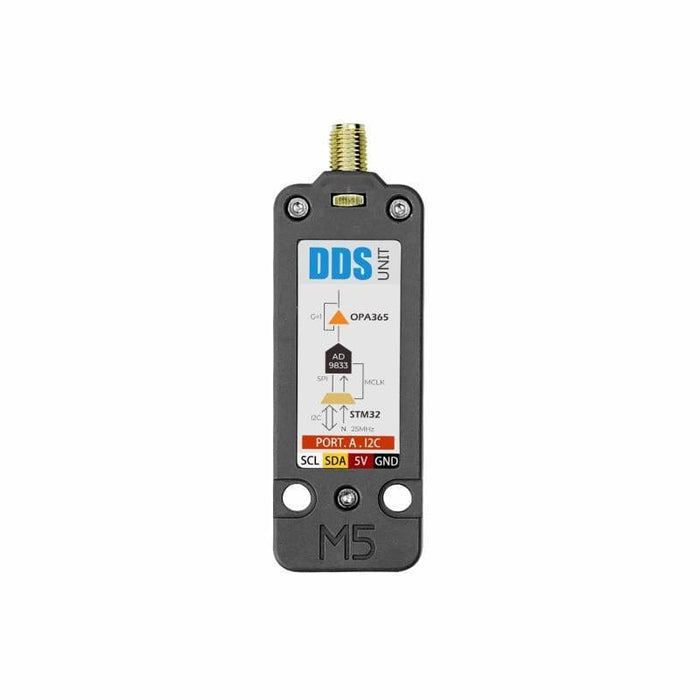

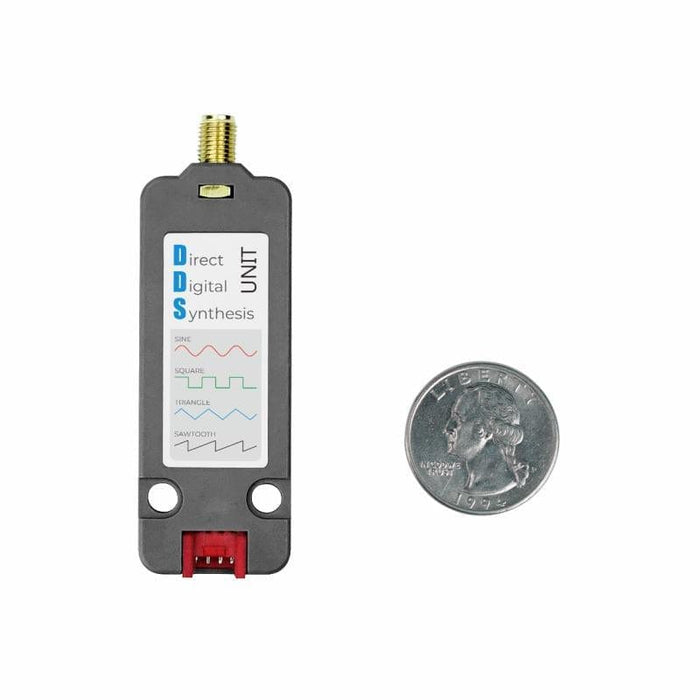

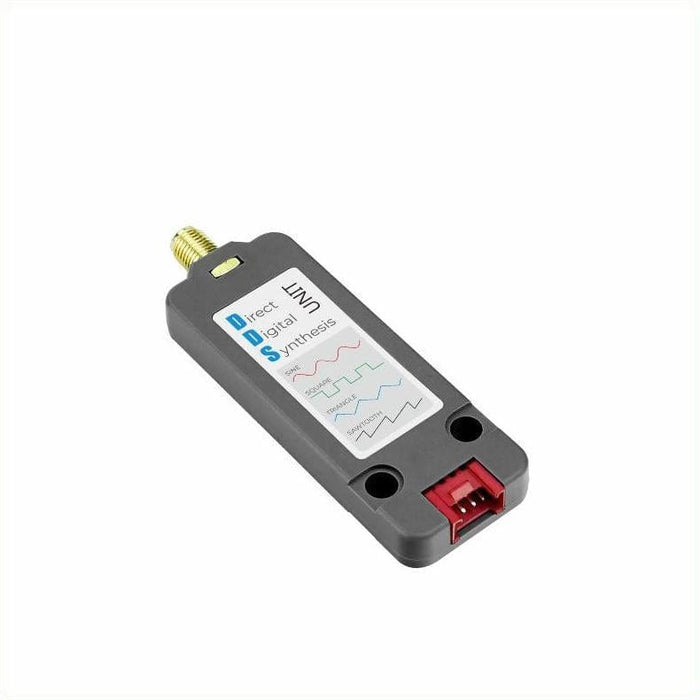

M5Stack DDS Unit (AD9833 Waveform Generator)

$22.56

$22.56 ~~$30.90~~

SAVE 26% Sold out

Make some waves with this handy Direct Digital Synthesis signal source unit, which includes an AD9833 programmable waveform generator and an STM32F0 microcontroller.

Communicating via I2C (addr:0x31), it can output multiple waveforms (sine wave, triangle wave, square wave output, sawtooth wave, signal output amplitude 0-0.6V) with adjustable frequency and phase.

It also supports deep sleep mode, which can reduce power consumption when idle. Perfect for generating waves for feeding into a synth or even for creating a whole new electronic musical instrument!

Features

Digital programmable frequency and phase
Signal output amplitude 0-0.6V
Sine wave/Triangle wave/Square wave/Sawtooth wave (fixed frequency: 13.6KHz)/DC output
Output frequency range: 0MHz to 1MHz (10MHz based on the reference clock)
28bit frequency resolution
11bit phase resolution

Package Contents

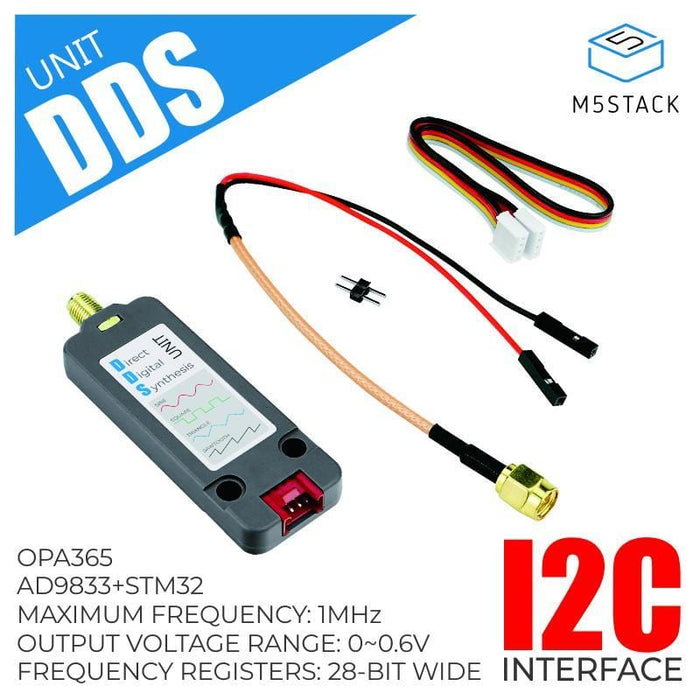

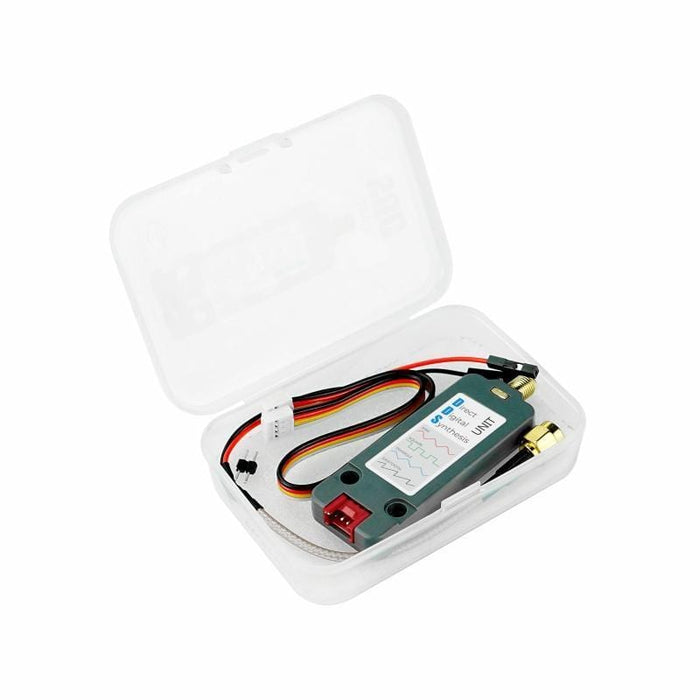

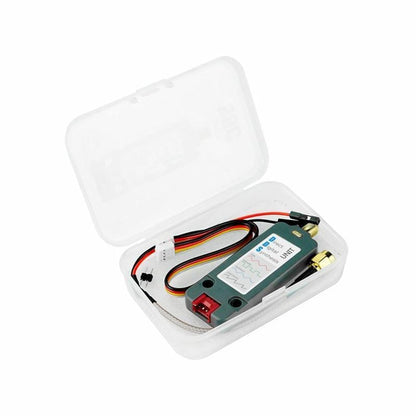

1x DDS Unit
1x HY2.0-4P cable
1x SMA-2.54mm cable

Specification

Specifications	Parameters
Support waveform	Sine wave/Triangle wave/Square wave/Sawtooth wave (fixed frequency: 13.6KHz)/DC output
Signal output amplitude	0-0.6V
Output frequency range	0MHz to 1MHz (10MHz based on the reference clock)
Frequency resolution	28bit
Phase resolution	11bit
Net weight	11.1g
Gross weight	34.7g
Product size	71248mm
Package size	88.56021mm
